    Barbecue Grilled Net 0.8mm Stainless Steel Wire Mesh Machine 220V 380V

    Ask Lasest Price
    Brand Name : Tianke
    Model Number : TK-DHW1500
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

    Barbecue Grilled Net 0.8mm Stainless Steel Wire Mesh Machine 220V 380V

    Iron Steel Barbecue Mesh Grilled Fish Net Roll Mesh Welding Machine In Russia


    Roll Mesh Welding Machine Description

    This roll mesh welding machine is also called welded wire mesh machine,wire mesh roll welde machine.The machine is full automatic wire mesh welding machine.It has electric cabinet to control the machine welding.There are buttons on the control panel,easy for the worker to learn how to operate the machine.There is a counter on the control panel, which can calculate the number of times of machine welding, or the length of the net.The machine will stop automatically when the preset data is reached.This full automatic roll mesh welding machine is popular in foreign countries.Also it already has more than 20 years history in China.


    Welded Wire Mesh Machine Parameter

    TypeTK-DHW-ATK-DHW-BTK-DHW-C
    Width of Mesh914.4mm; 1000mm

    1219.2mm;1524mm

    (4feet, 5feet)

    1219.2mm; 1524mm

    1828.8mm; 2133.6mm

    (4feet, 5feet, 6feet, 7feet)

    Mesh Aperture

    6.35mm-12.7mm

    (1 / 4” -1 / 2”)

    12.7mm-101.6mm

    (1 / 2” - 4”)

    25.4mm-101.6mm(1”- 4”)
    Wire Diameter0.4mm-0.65mm0.65-1.8mm1.0-2.2mm
    Input Voltage3-phase 380V / 220V / 415V / 440V 50Hz / 60Hz
    Motor2.2KW2.2KW2.2KW; 4.0KW
    Rated Capacity50kva*3 sets

    60kva*4 sets;

    60kva*5 sets

    60kva*4sets; 60kva*5sets; 75kva*6sets; 75kva*7sets;
    Overall Size2.3*1.3*1.4M2.5*1.3*1.4M; 2.9*1.3*1.4M2.5*1.3*1.4M; 2.9*1.3*1.4M; 3.3*1.3*1.4M; 3.6*1.3*1.4M;
    Weight1.5T2.0T; 2.5T2.0T; 2.5T; 3.0T; 3.5T

    Roll Mesh Welding Machine Feature

    1. Both the weft wire and warp wire feeding of the welded wire mesh machine are wire coils.So the roll mesh welding machine is full automatic.

    2. The speed of the welding is adjustable.The inverter can adjust the welding speed of the machine,fast or slow.

    3. There has integrated circuit board in the control cabinet, which can control the welding of the machine.

    4. There are thyristor modules in the control cabinet to control the current when the machine is welding.

    5. The mesh size of the machine can be adjusted multiple times.For example,15x15mm,30x30mm,45x45mm,etc.

    6. The finished mesh is rolled automatically.When reach the length,you can use electric scissors to cut the machine,unload the mesh roll.


    Roll Mesh Welding Machine


    Welding Transformer


    integrated circuit board

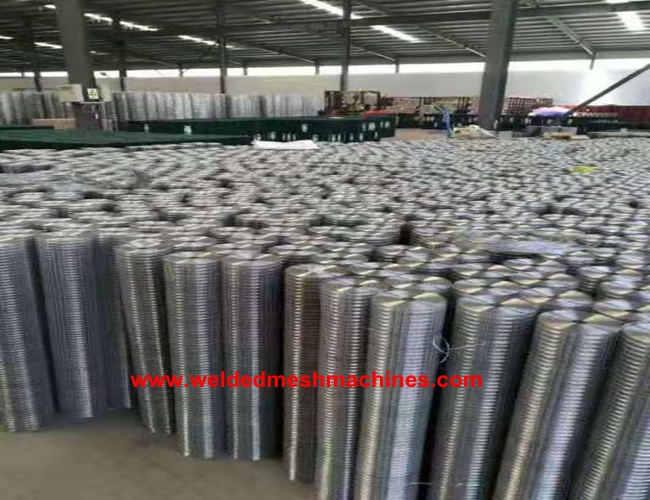

    End roll mesh
