Barbed Mesh By Galvanized Sheet Used In Military Razor Barbed Wire
Machine
Razor Barbed Wire Machine Description
Razor barbed wire machine, also called blade barbed wire machine.
It is composed by two production lines: Punching line and assembly
Line. Punching line is used to punch the Galvanized steel sheet
into blade shape. And the assembly Line wraps the wire into the
blade.
This machine has advantages of easy operation, high speed and low
energy consumption.
Razor Barbed Wire Machine Show
Razor Barbed Wire Machine Paremeter
| Model | 25T | 40T | 60T | Coiling machine |
| Voltage | 380V,50HZ or according to client's voltage |
| Power | 4kw | 5.5kw | 7.5kw | 1.5kw |
| Producing speed | 70 times/min | 75 times/min | 120 times/min | 2 Ton/8h |
| Pressure | 25Ton | 40Ton | 63Ton | -- |
| Thickness of sheet | 0.5±0.05(mm) according to customers' requirement
| -- |
| Diameter of wire | -- | -- | -- | 2.5mm |
| Material of sheet | GI and stainless steel | GI and stainless steel | GI and stainless steel | -- |
Razor Barbed Wire Machine Advantage
1. Automatic complete production line, operator friendly and higher
speed.
2. Automatic decoiler holds max. 2tons steel sheet; its motor made
of copper leads.
3. Punching machine adopts step motor to feed steel sheet fast and
smooth
4. Punching machine adopts high quality bush, not easy to burn down
5. Punching machine adopts button switches and foot switch, easy to
operate.
6. Razor coiling machine adopts inverter to adjust running speed,
more precise, long life.
7. Customized mould can save 20% raw materials; hard alloy CR#12
mould can be used for one year life.
8. Slitting frame and recoiler device wind up razor tapes rolls
tightly.
9. Chinese famous motor is used in coiling machine for smooth speed
adjustable.
Razor Barbed Wire Machine Display

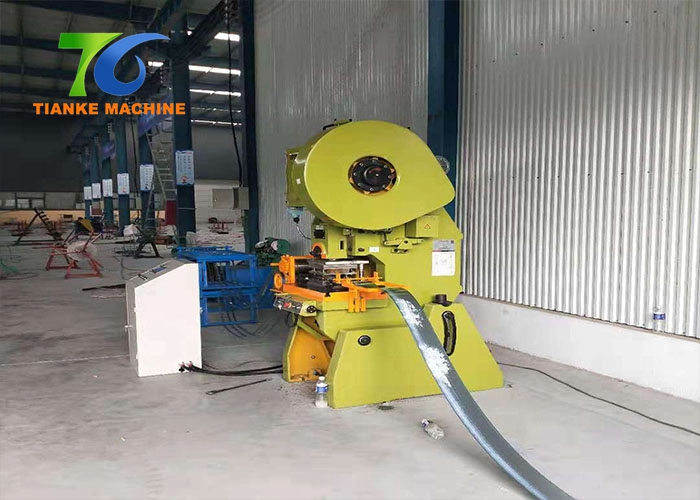

Punching Machine:This Machine install different mould punching the steel sheet to
different razor strips.
Razor Strip Re-coiler Machine
After punching,the razor strips are divided into two layers,and
collected by the re-coiler machine.
Coil Machine:This Machine is used to wrap razor strip up onto the steel wire and wind up the
finished products into rolls.
Razor Barbed Wire Machine Finish Product
Razor Barbed Wire Machine Application
The finished razor wire is widely used on security isolation of
military facilities, stations, power distribution stations, border
prisons, landfill, community protection, schools, factories, farms
etc.
