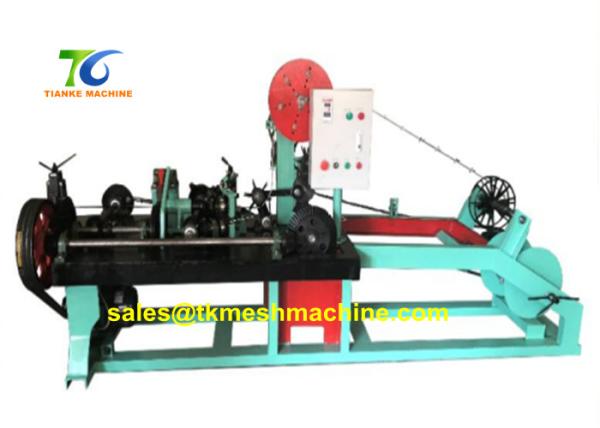

Double Wire Positive Negative Twist Barbed Wire Netting Machine
Barbed Wire Netting Machine Description
Barbed wire machine is used to produce barbed wire, which is widely
used for safety protection function,national defense, animal
husbandry, playground fence,agriculture,expressway, etc.
We always keep the best professional design and manufacturing
technology in this barbed wire machines with over 14 years
experience.
Barbed Wire Netting Machine Advantage
Barbed wire machine is composed of two parts: positive and negative
twisting, winding and friction wire-drawing, and four wire-drawing
trays are matched.
Barbed wire machine has the advantages of easy operation, smooth
movement, low noise and low energy consumption, and adopts advanced
electronic recording and control system. The products produced by
this machine are widely used in national defense, railways,
highways, farming and animal husbandry for protection and fencing.
Barbed Wire Fence Netting Machine Parameter
| Items | CS-A | CS-B | CS-C |
| Main wire Diameter | 1.5-3.0mm (Max.800MPA) | 2.0-3.0mm (Max.1700MPA) | 1.6-2.8mm (Max.1300MPA) |
| Barbed wire diameter | 1.6-2.8mm (Max.700MPA) | 1.6-2.8mm (Max.700MPA) | 1.4-2.8mm (Max.700MPA) |
| Barbed space | 3”, 4”, 5” | 4”, 5” | 4”, 5” |
| Motor power | 2.2kw | 2.2kw | 2.2kw |
| Twisted number | 3-5 | | 7 |
| Raw material | Galvanized wire or PVC coated wire. | Galvanized wire | Galvanized wire |
| Production | 70kg/h, 25 meters/minute | 40kg/h, 18 meters/minute | 50kg/h, 18 meters/minute |
| Total weight | 1200KG | 1000KG | 1000KG |
| Dimension | 1950×950×1300mm | 3100×1000×1150mm | 3100×1000×1150mm |
| 1760x550x760mm |
The Advantages of Our Company:
A. More than 15 workers which can guarantee the progress of the
making machine.
B. More than 14 years' experience which makes us be more
professional in this field.
C. Competitive price, high quality and good after-sale service.
D. Near to Tianjin Xingang Port.
