    Reinforcing Cnc 12mm Rebar Mesh Welding Machine In Construction Mesh

    Ask Lasest Price
    Brand Name : Tianke
    Model Number : TK-RM2000
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 15sets/month
    Delivery Time : 8 work days
    • Product Details
    • Company Profile

    Reinforcing Cnc 12mm Rebar Mesh Welding Machine In Construction Mesh

    Reinforcing Cnc Rebar Mesh Welded Machine In Construction Mesh

    Rebar Mesh Welded Machine Description

    The machine adopts PLC program system. The input front-panel has two forms, touch screen and keyboard, it makes the machine more intelligent and reasonable. The weft wire supply is automatic. The greatest advantage is that it can be adjusted the distance of weft random on the same one piece of mesh sheet. Welding machine adopts new type high-efficiency transformer, shifting gear can be divided into eight level, expand the scope of welding wire diameter. Easily operation, high flexibility, the production is several times than the artificial single spot welding machine. It mainly used for fence netting (highway, railway and mountain fence mesh, construction mesh etc.)


    Rebar Mesh Welded Machine Feature

    1. The machine is full automatic.The warp wire is automatically sent to the welding position.The weft wire is falliing automatically to the welding position.

    2. The motor of the machine is used famous brand servo motor.Good quality,long service life.Once there is problem,you can find the spare part in your country easily.

    3. The space of weft wire can adjust in the visual touch screen.It is very easy.

    4. The storage bin can store about 1 ton of weft wire.No need to frequent feeding material.

    5. There are water cooling system of the machine.This can ensure the stable operation of the machine.


    Rebar Mesh Welded Machine Parameter

    Wire diameter6.0-12.0mmWarp wirePre-cut wire
    Weft spacing100-200mmWeft wirePre-cut wire
    Warp spacing100-200mmRated voltage380V
    Width2000mmRated power200KVA*10 sets
    Welding speed60times/minMotor4.0KW
    Welding spots20 piecesWeight7.5T

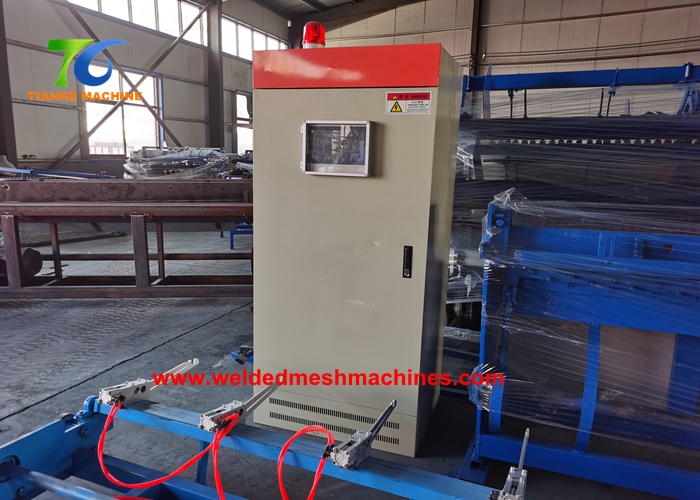

    Control System: This is PLC control system.The core parts of machine operation.


    Welded Electrodes: It is made of high chromium copper with good conductivity, wear resistance and long service life.

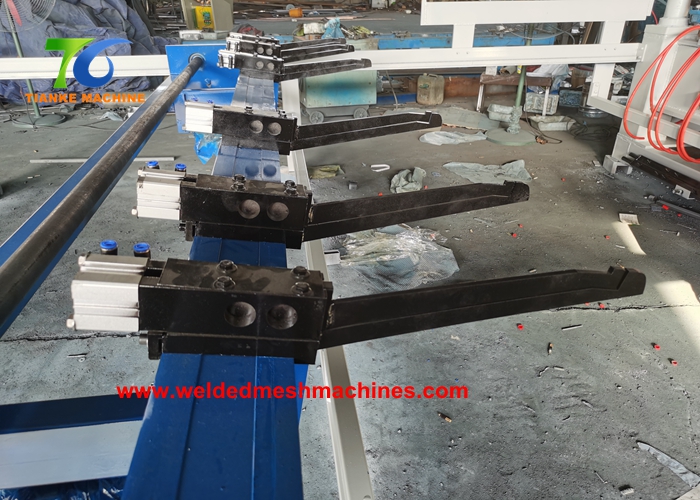

    Pull Hook


    Finished Reinforcing Mesh
