Electrical Brc Reinforcing Concrete Welded Roll Mesh Welding
Machine
Welded Roll Mesh Welding Machine Description
The welded roll mesh welding machine is used to weld wire mesh in
rolls.It is equipped with automatic mesh rolling machine.The whole
machine is controlled by PLC control system.It has visual touch
screen in the cabinet panel.It is like a computer.Workers only need
to input data in the touch screen. The operation is simple.The warp
wire feeding is wire coils.The end products is mesh in rolls.The
mesh hole size is adjustable.Usually from 100 to 300mm.The distance
between the warp wire is adjusted manually.The space between weft
wire is input on the touch screen.
Welded Roll Mesh Welding Machine Technology
1. The machine is full automatic welding.All intersections on the
weft wire are welded at one time. That is, all the warp wire on the
mesh are welded at one time
2. The welding speed is adjustable.You can change the welding speed
in the control cabinet.
3. The welding transformer is made of pure copper. Good
conductivity, good quality, durable.
4. Water cooling can be used for welding transformer and lower
electrode to reduce temperature. Keep welding for a long time in
high temperature environment.
5. The length of the roll mesh can be set in the control system.The
mesh will be rolled automatically while welding.
Welded Roll Mesh Welding Machine Parameter
| Wire diameter | 2.0-5.0mm | Warp wire | Coil wire |
| Weft spacing | 100-300mm | Weft wire | Pre-cut wire |
| Warp spacing | 100-300mm | Rated voltage | 380V |
| Width | 2500mm | Rated power | 125KVA * 4 sets |
| Welding speed | 60times/min | Motor | 11KW |
| Welding spots | 24 | Weight | 4.0T |
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory, professional wire mesh machine manufacture. We
warmly welcome customers from worldwide to visit our factory and
establish long-term cooperation.
Q: Do you do OEM?
A:Yes
Q: I know nothing about the import, can you help me?
A: It's a piece of cake. Don't worry about it. We specialize in
export business, we will help you to import.
Q: What should i do if we feel hard to use the machine?
A: If you need ,at any time, we can send our engineers to your
factory for training, debugging machine and maintenance. Operating
Instruction &Maintenance Manual attached with the machine. we
will send you the solution by email or phone within 24 hours, When
we receive your service request. We can send you video for learning
Q:If the parts was broken, how about the solution?
A: 1)Non-artificial damage parts, within warranty period, can be
provided free of charge
Custom-made parts with detailed drawing can be provided
High Quality Welding Electrodes
The material of the welding electrodes is high chromium copper.good
conductivity, firm welding.
Automatic Mesh Rolling Machine

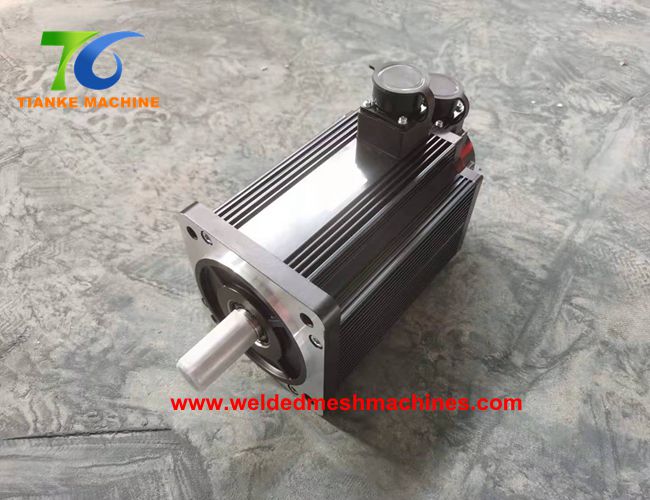

High Quality Servo Motor
Finished Mesh Roll
