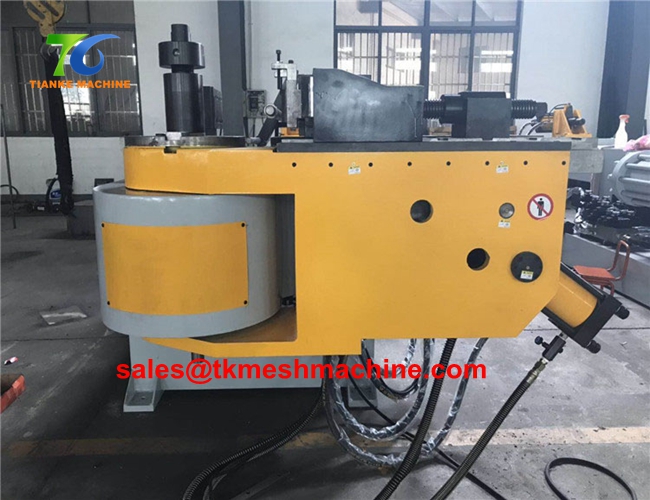

Thick Wall Gym 3 Axis Helical Big Aluminium 0.9mm Metal Pipe
Bending Machine
Introduction of Pipe Bending Machine
1. Bending pipe with servo motor drive, high precision bending
angle and compensation value (3 axis or more).
2. Corner and feeding is drived by servo motor, high efficiency,
accurate bending angle and feeding.
3. With automatic detection error and fault function, and it the
screen display, so that the operator can be easy to remove
obstacles.
4. All processing information by the touching screen input.
5. Each bending pipe can set the compensation value, speed, release
gap according to different material.
6. A pipe per bending all individually preparing five action
sequence and 10 sections of speed, allows the operator the match
the use, improve work efficiency, reduce the fitting interference
points.
Pipe Bending Machine Feature
1. Using the microcomputer control, automatic bending.
2. Safety:the emergengcy stop button on the bending arm.
3. Dialogue operation, easy to study and understand.
4. Partition hypothesis speed, high pipe-bending precision up to
±0.1°
5. 16 groups pipe-bending information storage, all angles work
forms a coherent whole
6. The mandrel automatically in and out, saving much time
7. Suitable for bending steel pipe, stainless steel pipe, copper
pipe, aluminum pipe, etc
8. Can install auxiliary push die, low returning-core function, can
bend thin pipes
9. Special fitting: special mold, anti-wrinkle board, auxiliary
push installation, etc
Parameter
Max bending capacity | Ø63mmx4mm |
Max bending radius | R350mm |
Min bending radius | According to pipe diameter |
Max bending degree | 190° |
Max effective distance of mandrel | 2600mm |
Control system | NC control |
Max elbow bend pipe | 16 |
Max storable sections | 16x16 |
Motor power | 5.5Kw |
Max hydraulic pressure | 12Mpa |
Oil tank capability | 220L |
Measurement | 350x75x110cm |
Weight | 1500kg |
