CNC Stainless Steel O - Ring Circle Wire Ring Forming Machine
Wire Ring Forming Machine Description

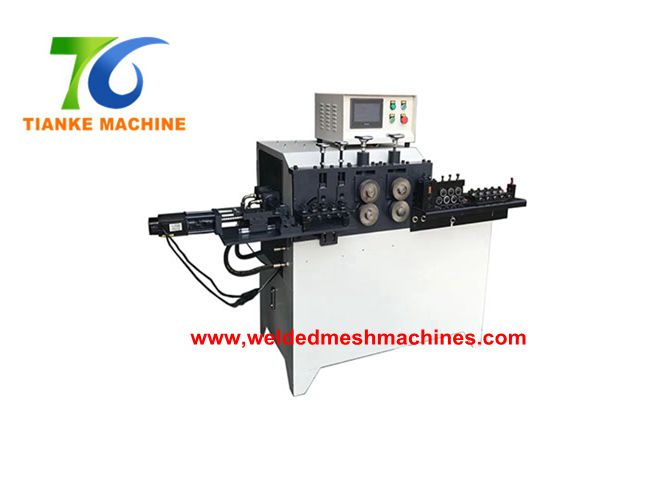

Automatic Wire Ring Forming Machine is mainly used for bending the
metal wire or metal strip into full circle,semicircle or any angle
and any length concentric arcs.
As to the special wire and strip with noncircular cross
section,only need to change the feeding roller,adjustable
roller,pressing roller,and the cutter.Widely used in various of
hardware manufacturing industry.
The fully Automatic CNC Ring Making Machine combines the advantages
of Japan, Europe and Taiwan relative equipments,have high
production rate,high precision,simple operation,energy saving,low
production cost.
The machine is full automatically, can also be equipped with
hole-punching function.
Wire Ring Making Machine Feature
1. Widely use: is widely applied to various circles of circular,
semi circle or arbitrary angle (concentric angle) of all kinds of
wires. It can also be used for making square and elliptical work
pieces with special mould and adjustable rollers.
2. Efficient It is the first choice equipment for improving product
quality, reducing production cost and improving production capacity
in industries

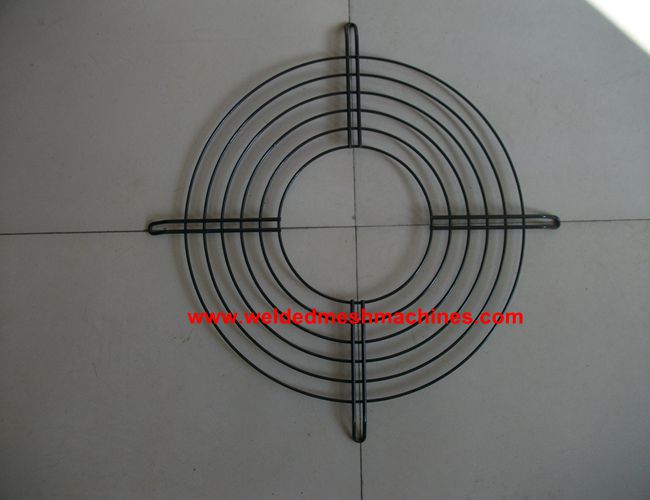

3. Products usage:such as environmental protection and dust removal
framework, fan net cover, cement pole, mine air tube, lampshade,
handicraft, flower pot rack, case and bag fastener, daily hardware
and kitchenware (such as furnace rack, wine / cup rack), etc
Wire Ring Making Machine Advantage
1. Advanced control technology: The control part is designed and
manufactured by our factory, use PLC control, touch switch by which
user can adjust parameters based on needs, can store multiple
parameters, digital show, cost and time efficient.
2. Reliable and stable function: directly drived by hydraulic
motor, cycloid motor torque is 477Nm, no need gear power to
support, which decrease the gap between gears, to realize higher
precision. Input power is 1.5KW, wire feeding is stable, fast and
accurate. Have positive and negative function, easy to adjust.
3. Professionally designed and manufactured oil station, stable oil
pressure, adjustable speed. Parts oil pump, oil pump motor and
electro-magnetic valves from TaiWan.
4. Use six digital counter: can set the product quantity, when the
production quantity reaches setted quantity, the machine will stop
automatically and alarm.
5. Use encoder from Japan, can count accurately.
6. Water cooling: guarantee stable oil temperature, when weather is
hot and long time operation, the machine still can work normally,
and precision has been guaranteed.
7. Application: Can automatically make round wire ring, half-round
wire ring based on needs. If need to make square shape and oval
shape of loops, only changing the molds and pressure-adjustment
wheels will be okay.
8. Fast speed: 20meters/minute;
9. High precision: finish product tolerance is 0.5mm;
10. High efficiency,consume low electric power, save cost;
11. Easy operation, can operate in 2 directions.
Wire Ring Making Machine Parameter
| Wire Diameter | 1-6mm | 2-8mm | 2-10mm | 4-13mm | 5-16mm | 8-18mm | 8-20mm |
| Ring Diameter | 55-750 | 60-750 | 80-800 | 80-800 | 80-850 | 80-950 | 80-950 |
| Model | 1-6 | 2-8 | 2-10 | 6-14 | 8-16 | 6 axises | 8axises |
| Power Supply | 3 Phase 380V 50Hz |
| Wire feeding wheel quantity | 2 | 2 | 3 | 4 | 5 | 6 | 8 |
| Hydraulic motor power | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 | 18 |
| Hydraulic motor flow | 100 ml/min | 160 ml/min | 320 ml/min | 100 ml/min | 125 ml/min | 200 ml/min | 200 ml/min |
| Cutter cylinder capacity | 63 | 63 | 80 | 80 | 100 | HOB 100 | HOB 125 |
| Oil pressure range | 0.3-0.4mpa | 0.3-0.5 mpa | 0.3-0.6mpa | 0.3-1mpa | 0.3-1.2mpa | 0.3-1.5mpa | 0.3-1.5mpa |
| Hydraulic oil | 46# 68# |
| Wire type | Round ,Flat ,Square |
| Dimension(cm) | 116*68*145 | 130*75*145 | 175*78*145 | 180*95*155 | 198*95*155 | 230*150*170 | 270*150*170 |
Hydraulic
system | Pressure adjusting valve | yes |
| Hydraulic valve | No | No | 1 | 1 | 1 | 2 | 2 |
| Electromagnetic valve | 3 |
| Regulator | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Oil route substrate | 1 |
| Cooling pump | No | No | Yes | Yes | Yes | Yes | Yes |
| Computer system | Touch screen | 1 |
| Detector | 1000 |
| Mechanical function | Encoder will get the wire feeding data,computer control the wire
feeding length to accomplish need wire ring automatically |
| Manual control when do machine trial,then will automatically
work.When machine is out of wire,it will alarm and stop
automatically |
| Make different ring diameter base on needs |
Wire Ring Making Machine Details
