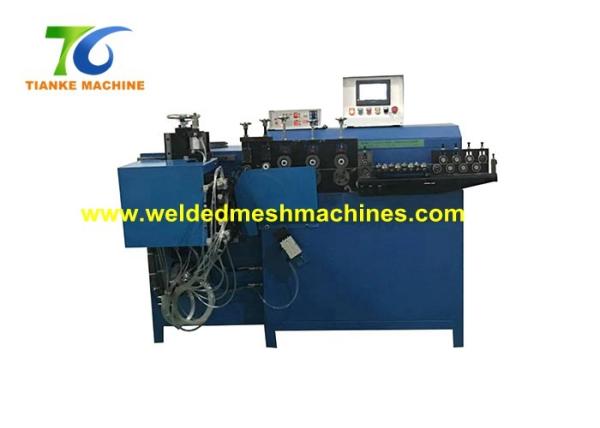

Basketball Hoop Circle Forming Wire Ring Making Machine With Butt Welding

Wire Ring Making Machine Description

Our machine is full automatic round ring making and welding machine.The machine has automatic wire feeding device,this device can also straightening the wire.After the wire is shaped by the circle forming wheel,the welding device will weld the ring and unload the ring.The machine will automatically cycle this action.

Wire Ring Making Machine Advantage

1. PLC+Touch Screen Control;
2. Automatic feeding ( feeding the wire)
3. Automatic Wire straightening;
4. Automatic ring forming ( hydraulic system 2.2kw)
5. Automatic moving (pneumatic robot arm)
6. Automatic welding (AC resistance power)
7. Automatic unloading (pneumatic robot arm)
8. Sound-light alarm function: the machine will give alarm when wire lack,power is not stable, etc to protect machine and operator safety.
9. Counting function: can preset the needed product quantity. When this quantity is reached,the machine will stop automatically.
10. Monitoring function: the touch screen will monitor the whole process of actions and the welding current of each welding process. It will give alarm, when the monitoring function is abnormal.

Wire Ring Making Machine Parameter

Input Power Supply: 3Phases, 380V, 50HZ
Air Pressure: 0.6-0.8MPa
For wire diameter: 2-6mm
For inner ring diameter: 70-550mm
Ring Tolerance: 0.2mm
Machine Dimension: 1680*1350*1300mm
Machine Weight: 500kgs
Wire feeding by servo motor, motor power: 2.6KW, wire feeding speed: 30m/minute

Welding Transformer:50KVA

Wire Ring Making Machine Finish Products

Anping Tianke Wire Mesh Equipment Co.,Ltd. is located at the junction of Beijing, Tianjin, Shijiazhuang---- Anping County, which is famous as “Hometown of wire mesh”. The factory is a professional manufacturer for wire mesh machinery. The factory has been developing smoothly and quickly based on rich experience and strong technical personnel.

Our main products: Reinforcing mesh welding machine, fence mesh welding machine, construction mesh welding machine, welded mesh welding machine，chain link fence machine, barbed wire machine, razor barbed wire machine, expanded metal mesh machine, wire straightening and cutting machine, wire drawing machine, wire bending machine,wire ring making machine and so on.

We have built good reputation among our customers with excellent quality products, reliable service and good credit. We supply a whole-process service from product designing, developing, producing, installing and after-sales services. The company has been titled” Credible and Reliable Product & Service Supplier” by numerous users.

We sincerely look forward to your cooperation and long-term business relationship. Warmly your arrival to create a better tomorrow.
