Mesh Welding Machine For Construction Steel Mesh Wire Used In Road
Mesh Welding Machine Description
1. This machine can make both panel mesh and roll mesh
2. Line wires are fed from wire coils automatically and through straightening rollers. Crosswire should be pre-cut and fed by a crosswire hopper automatically.
3. Servo motor and planetary reducer for pulling mesh, more
precise.
4. Equipped with cutting machine to make panel mesh and rolling
machine to make the rolled mesh.
Mesh Welding Machine Feature
1. Taiwan Delta PLC control and touch screen more stable.More
technical parameters (such as speed,mesh size)can be set and
adjusted on the touch screen.Very convenient for workers to
operate.
2. Good CuCrZr of electrodes,transformer cooled by water.
3. Both wires are pre-cut and finished mesh panel more nice.
4. Longtitude wire fed automatically by raw material feeding
device.Finished mesh pulled automatically by pnematic device.More
loading capacity for the cross wires.Save more manual labor and
time.
5. Working speed more fast and production capacity more improved.
Mesh Usage
Products are widely used in the floor &wall reinforcing mesh in
the building,reinforcing mesh in the tunnel,bridge and road.
Construction Mesh Wire Welding Machine

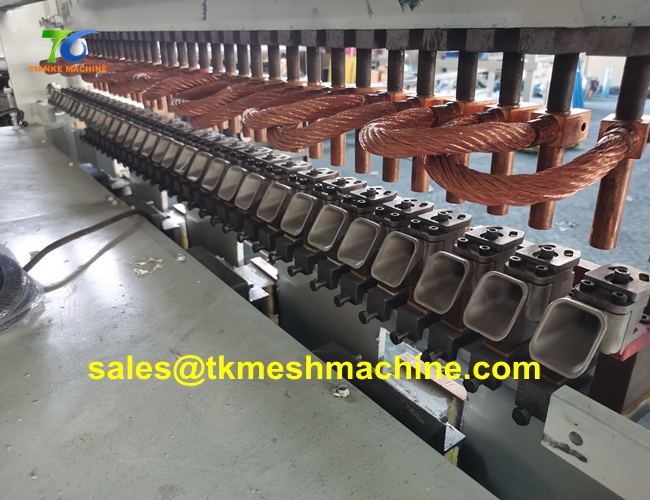

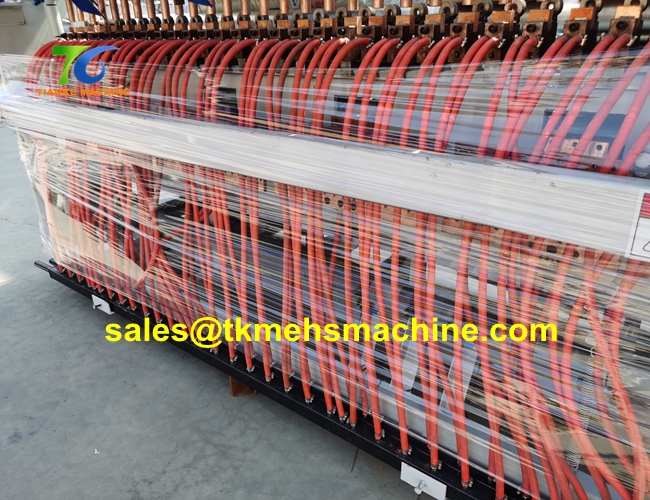

1. Water cooling system: The low welding electrodes and the welding
transformers are connected by a water pipe, which constitutes a
water circulation system as a whole.
2. Wire threading slot: The warp wire is placed through the threading
slot, and the material of the next mesh can be prepared while
welding.

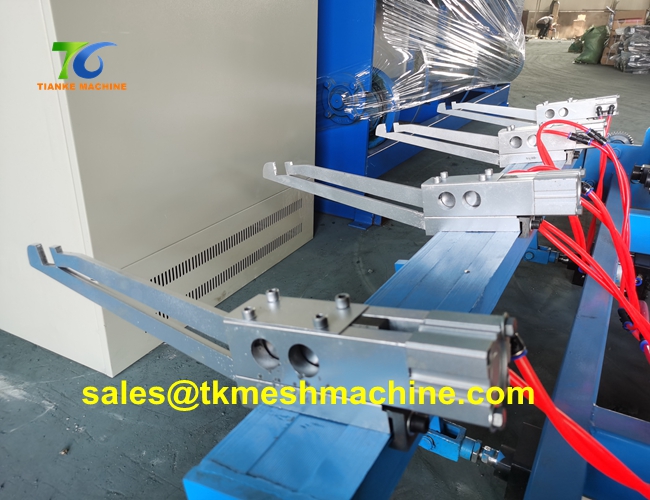

3. The mesh pulling device uses the cylinder to clamp the iron wire
for mesh pulling. After the net is pulled to the end, the net hook
will drop automatically and will not return to the top net. Fast.
