    300x300mm Cnc Security 3d Panel Fence Mesh Welding Machine

    Ask Lasest Price
    Brand Name : Tianke
    Model Number : TK-HWJ2000
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 15 sets/Month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    300x300mm Cnc Security 3d Panel Fence Mesh Welding Machine

    CNC Security 3d Fence Panel Mesh Welding Machine In Kenya


    Panel Mesh Welding Machine Description

    This machine is used to make panel mesh.It is automatica wire mesh making machine.The warp wire and the weft wire is pre straightening and cutting before welding.So the mesh is very flat.The machine belongs to CNC welding machine.The control system is equipped with visual touch screen which just like a computer.The worker can input data on the screen.The aperture,the welding speed,the welding current all can be set.So this human-computer interaction page is very convenient.


    Panel Mesh Welding Machine Advantage

    1. The weft wire and warp wire are pre straightening and cutting,So being welded,the surface is very flat.

    2. The welding electrodes are made of high chromium copper.It is good conductivity,and wear resistance.

    3. The control system include thyristor,circuit board.The thyristor is used to adjust the welding current.Different wire diameter needs different electric current to welding firm.

    4. The welding is automatic.The aperture can be adjusted.For example,the machine can weld mesh in aperture minimum 50x50mm,60x60mm,100x100mm,etc.

    5. The welding transformer of the machine is made of copper.The best quality.Adopt separate control welding, instantaneous current, welding firmly.


    Panel Mesh Welding Machine Parameter

    Name of CommodityPanel Mesh Welding Machine
    Wire Diameter2-5mm
    Mesh Size50-300mm
    Mesh Width2000mm
    Mesh Length4000mm
    Power4kw
    Wire FeedingPre straightening and cutting
    ControlCNC PLC and visual touch screen
    Transformer125kva*5 sets
    Overall Dimension5500*2700*1600mm
    Weight2300kg
    Warranty12 months
    Oversea ServiceSupport

    Packaging

    1.main machine and accessory equipment will be packed with sketch film paper;
    2.control cabinet and spare parts will be packed with the wooden box;
    3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not move in the container.


    Main Welding Machine with control system

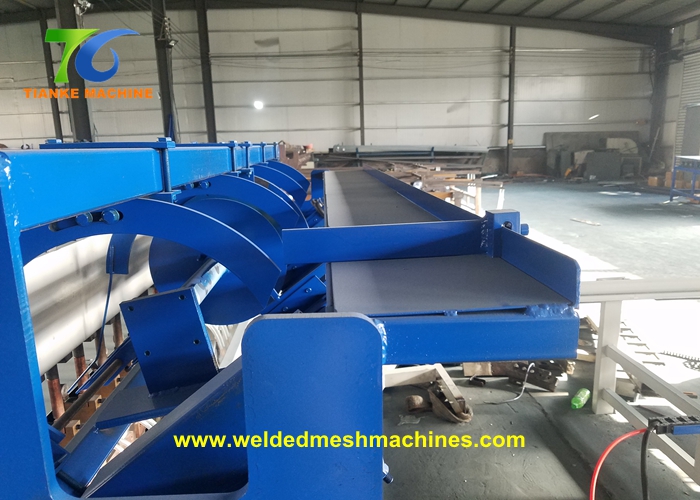

    The weft wire falling hopper: The pre straightening ans cutting weft wire is falling automatically into the welding position by this device.


    Electrode loop: The electrode loop is made of high quality copper rope, which has good conductivity.


    Finish Mesh
