4mm Building Material Mesh Wire Welding Machine 2000mm Width
Mesh Wire Welding Machine Description
During the construction of houses and pavements, wire mesh will be
used in the construction process in order to make the walls firm
and prevent the pavement from cracking.This machine is specialized
in producing wire mesh.And this machine is fully automatic in
welding.which greatly improves the production efficiency.What
workers need to do is to straighten and cut the raw materials of
wire mesh to the required length in advance.The welding speed is
fast and the labor cost is greatly reduced.
Mesh Wire Welding Machine Technology
The machine belongs to resistance welding gantry row welder. The
copper bar is used as the welding electrode, and the upper and
lower electrodes are connected through the cooper loop, which is
firmly welded. No need for traditional welding rod, low loss. The
weft wire
automatically falls to the welding position in the falling hopper,
which is controlled by the stepping motor. The accurate blanking
position can ensure the uniform grid of the wire mesh and achieve
beautiful effect as a whole.
Mesh Wire Welding Machine Feature
1. The warp wire and weft wire are pre straightening and cutting.So
the mesh is very flat after welding.
2. The main motor is 4kw. Low energy consumption and reduced
production cost.
3. The welding electrode adopts high chromium copper. Wear
resistance and long service time.
4. The distance of weft wire on the same mesh can be different. It
can also be said that different meshes.
5. The machine is equipped with PLC control system which has visual
touch screen.It is just like a computer,so it is easy to operate.
Mesh Usage
Products are widely used in the floor &wall reinforcing mesh in
the building,reinforcing mesh in the tunnel,bridge and road.
Mesh Wire Welding Machine

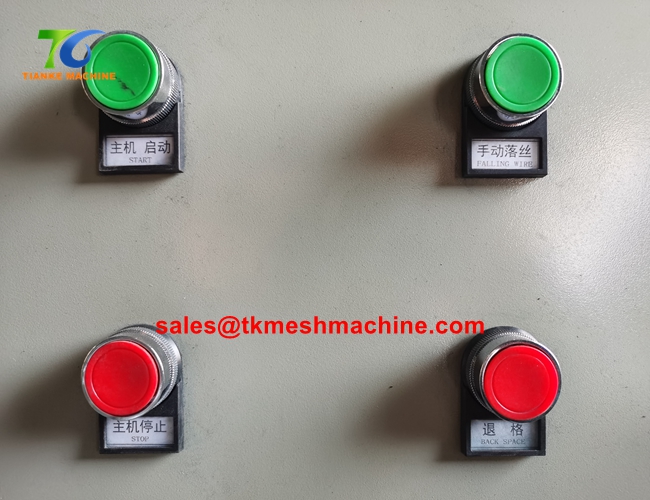

1. There are Chinese and English language in the control panel.Easy
for the worker to operate the machine.
2. Wire threading slot: The warp wire is placed through the threading
slot, and the material of the next mesh can be prepared while
welding.

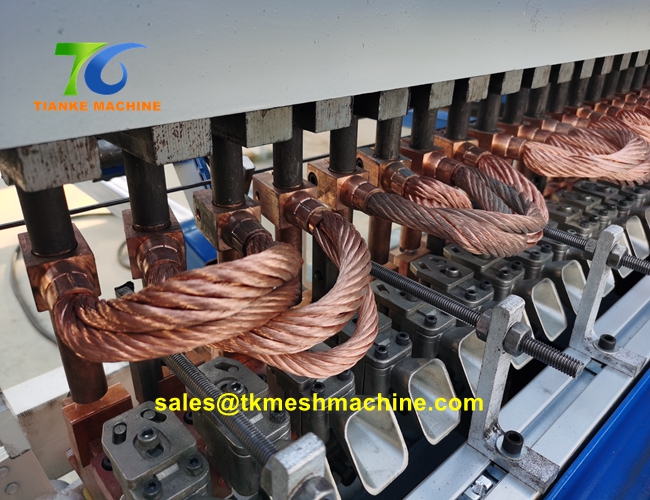

3. The copper loop is connected between the welding electrodes.This
can ensure the high quality and firm welding of the machine.
