Expanded Metal Mesh Fence Anti Throwing Net Expanded Metal Mesh
Making Machine
Expanded Metal Mesh Making Machine Description
TK25-63 High Quality Expanded Metal Mesh Machine belongs to medium
size machine. The machine can make expanded metal mesh width up to
2000mm,and the mesh sheet thickness up to 3.0mm.The running speed
of this machine is 75 times/min.The machine is PLC control.So it is
easy to operate.
Structure of Expanded Metal Mesh Making Machine
This machine is mainly composed of frame, driving system,
crankshaft connecting rod, knife rest, feeding mechanism, pendulum
mechanism and power distribution unit.
1. Frame: this machine adopts the whole frame, stable performance.
2. Driving system: the motor drives the flywheel, then flywheel
drives crankshaft to rotate. Bevel gear drives the cam to rotate,
push the upper knife to swing left and right.
3. Crankshaft connecting rod: it is composed of crankshaft, ball
head screw and bearing plate.
4. Knife rest: it is composed of upper knife rest, lower knife rest
and pressure plate part.
5. Feeding mechanism: the stepper motor drives roller to rotate
through gearbox, then achieve feeding.
6. Electrical parts see the electrical schematic diagram,
electrical components table and stepper motor operating
instruction.
Application of Heavy Duty Expanded Metal Mesh
This kind of metal mesh is mainly used for ship building, mining,
machinery, construction, transportation, oil, urban construction,
hardware, protective and so on.
Packaging & Shipping
I. plastic film or bubble film which protect machine from rust on
the humid environment on sea
II. Spare parts are in wooden box
III. All devices will be fasten in container to avoid the shake on
road
Expanded Metal Mesh Making Machine Parameter
| Model | TK25-16 | TK 25-25 | TK 25-40 | TK 25-63 | TK 25-100 | TK 25-160 |
Material
Thickness(mm) | 0.1-1 | 0.1-1.5 | 0.1-2.5 | 0.5-3 | 0.5-5 | 0.5-8 |
Material
Max.width(mm) | 1000 | 1250 | 1500 | 2000 | 2000/2500 | 2000/2500/3200 |
Speed
(times/min) | 220 | 200 | 110 | 75 | 60 | 50 |
| Feed distance(mm) | 0-2.2 | 0-3 | 0-6 | 0-6 | 0-10 | 0-10 |
| Mesh opening size LWD(mm) | ≤25 | ≤30 | ≤80 | ≤150 | ≤180 | ≤200 |
| Motor(kw) | 5.5 | 5.5 | 11 | 11 | 18.5/22 | 30 |
| Weight(T) | 2.2 | 3 | 7 | 11 | 13/15 | 18/20/26 |
| Size(mm) | 1.1*1.7*2 | 1.5*2.1*2 | 1.8*3.2*2.1 | 3.4*3.4*2.35 | 3.4*3.6*2.65 | 3.5*3.7*2.65 |
Expanded Metal Mesh Making Machine Details

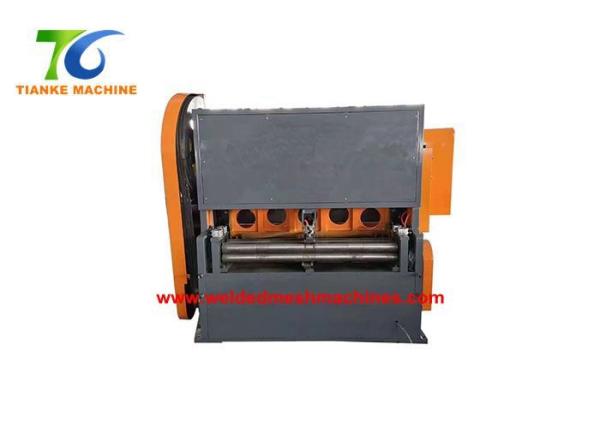

Machine photo
Auxiliary equipment: Mesh hole flattening machine: this machine can
flatted the mesh hole more smooth.
Auxiliary equipment: Multi wheel flattening machine,this machine is
used to flatten the surface of steel mesh.So the mesh will be
beautiful.
CNC flattening cutting slitting machine: The machine is controlled
by the CNC system. The length of the cut can be input in the
computer. Feeding for servo motor, to ensure that the size of the
cut-off is accurate.
Finished Product
