1mm 6mm Wire Ring Machine 1.5kw Hydraulic Ring Maker Machine

    Buy cheap 1mm 6mm Wire Ring Machine 1.5kw Hydraulic Ring Maker Machine from wholesalers

    Buy cheap 1mm 6mm Wire Ring Machine 1.5kw Hydraulic Ring Maker Machine from wholesalers
    • Buy cheap 1mm 6mm Wire Ring Machine 1.5kw Hydraulic Ring Maker Machine from wholesalers

    1mm 6mm Wire Ring Machine 1.5kw Hydraulic Ring Maker Machine

    Ask Lasest Price
    Brand Name : Tianke
    Model Number : TK-DQJ6
    Payment Terms : Western Union, T/T, L/C
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

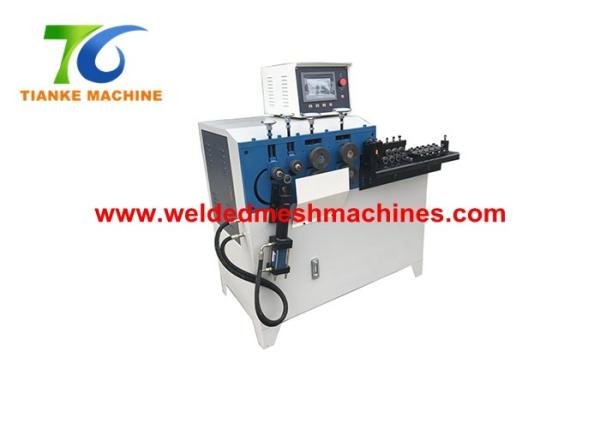

    1mm 6mm Wire Ring Machine 1.5kw Hydraulic Ring Maker Machine

    1-6mm Hydraulic Wire Ring Making Machine For Kitchenware In Malaysia


    Wire Ring Making Machine Description

    The machine belongs to automatic wire forming equipment.It is used to making circle ring.The machine is CNC control hydraulic looping machine.The machine is a numerical control hydraulic looping machine. It is fed by hydraulic motor. After forming, it is cut off by hydraulic cutter. The machine only needs three-phase electricity, low power consumption and low production cost.


    Wire Ring Making Machine Feature

    1. The mechanism key part adopts imported components to ensure the service life of the machine. The solenoid oil valve, oil pump and oil pump motor are Taiwan products, and the encoder is imported from Japan.

    2. The machine is stable, fast and accurate, and has the advantages of fast, slow and reversing materials.

    3. Material: the wire feeding wheel, cutter, etc. are made of excellent alloy steel, and are treated by vacuum to make them wear-resistant and prolong their service life. The straightening block is made of cast ironAlloy / plastic king, etc.; the shafts are all made of 40Cr or 45 steel and treated by quenching and tempering, and the gears are all made of forging stock. After quenching and tempering and high frequency quenching of tooth surface, the hardness is as high as hrc55-58 degrees.


    Wire Ring Making Machine Package

    1. Stable wooden package protects machine from strike and damage.

    2. Wound plastic film keeps machine out of damp and corrosion.

    3. Fumigation-free package helps the smooth customs clearance.

    4. The big size machine will be fixed in container without package.


    Our Service

    1. Professional and patient consulting service to help you find the suitable solution.

    2. Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.

    3. Powerful control of the machine production schedule and quality, and keep you posted about details in time.

    4. Free training in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.

    5. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.

    6. For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.

    7. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

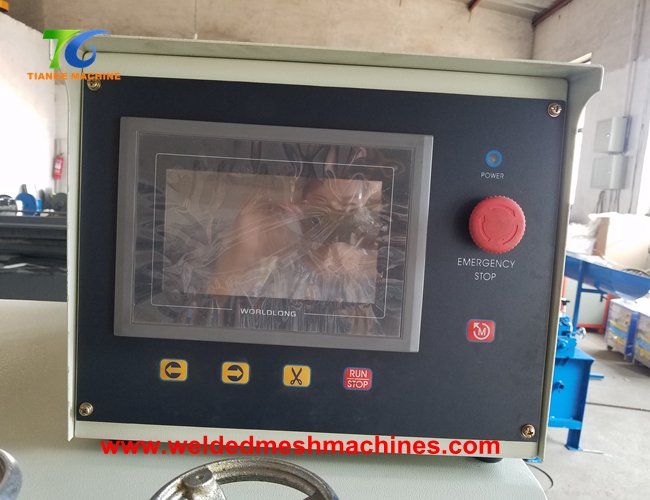

    Control System: The control panel has function indication, which is easy to operate
