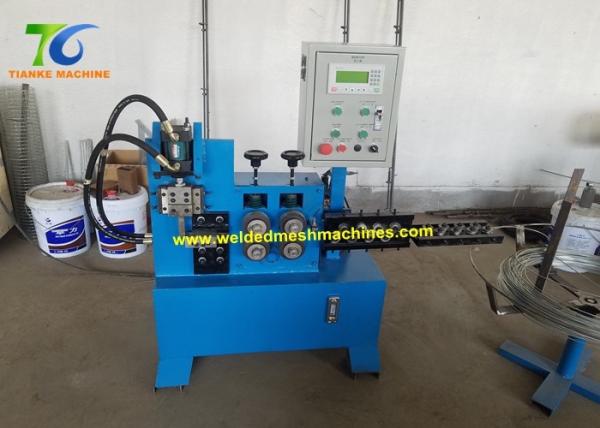

1-6mm Aluminum Wire Hydraulic Wire Straightening And Cutting
Machine
Introduction of Wire Straightening and Cutting Machine
This CNC hydraulic wire straightening and cutting machine is widely
used to straighten galvanized wire,aluminum wire,copper wire and
other wire with high surface requirements. Because this machine
straightens the wire surface without scratch.
Wire Straightening and Cutting Machine Feature
1. Before the machine works, it is necessary to inject about
three-quarters of the hydraulic oil into the hydraulic tank (the
hydraulic oil will overflow when the machine is too full), and at
the same time, inject oil into the oil hole to lubricate all parts.
2. Connect the power supply (380V, 5 wires, 3 live wire, black is
the neutral line, the two colors wire are the ground line), turn on
the power switch, the display will light, see if the direction of
the motor is going forward, click on the jog whether the switch
machine is working properly.
3. The screen shows the length of the wire (is the length of your
product), other data has been debugged before leaving the factory.
Please do not arbitrarily change, first press [SET], there will be
a black block, then you can adjust the data, [ENT] is the
confirmation button, [ALM] is the output is cleared.
4. The iron wire passes through the 2 sets of straightening wheels
from the wire frame all the way to the incision. Press the screw,
press the hoe, press the jog feed line, and press the jog switch to
straighten the cut and connect. Then open the automatic switch and
you can work continuously.
Wire straightening and Cutting Machine Maintenance and Repair
1. Check each screw tightly every day, add lubricant to each turn,
and turn it on again.
2. Generally, do not disassemble parts during routine maintenance.
When disassembling, it should be carried out by a special repair
worker. If abnormal phenomena are found during operation of the
equipment, it should be stopped immediately, and it is not allowed
to operate with disease.
3. Regularly check whether the screws and fastening parts of each
part are locked. Do not allow looseness. Check whether the power
cord is aging or not. The socket contact is good and reliable,and
repair and replace it in time.
4. If it has not been used for a long time, it should be cleaned
first and kept safely. It should be full lubricated once every six
months and idling for a short time.
5. Equipment accessories and special tools should have special
cabinet racks to keep clean and prevent rust and bumps.
Wire Straightening And Cutting Machine Parameter
| Applicable wire diameter | 1.0-6.0mm |
| Length tolerance | ±0.2mm |
| Straightening speed | 18 m/min |
| Motor power | 0.75 kw *2 sets |
| Rated voltage | 380V ( Customized ) |
| Size | 1800 * 690* 760 mm (length * width * height) |
| Weight | 250kg |
| Material requirements | coiling wire |
| Mechanical features | Chinese-English menu, super LCD, easy to operate. |
| Set the number of times, accumulate quantity and memory of
specifications. |
| The cutting length is adjustable and is controlled by PLC program. |
Packaging and shipping
1. Packed in wooden case, or customized.
2. FOB Tianjin or other China main port by sea.
3. FOB Beijing airport or China main airport by air.
