    2T Welded Wire Mesh Machine

    Ask Lasest Price
    Brand Name : Tianke
    Model Number : TK-DHW1800
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 8 work days
    • Product Details
    • Company Profile

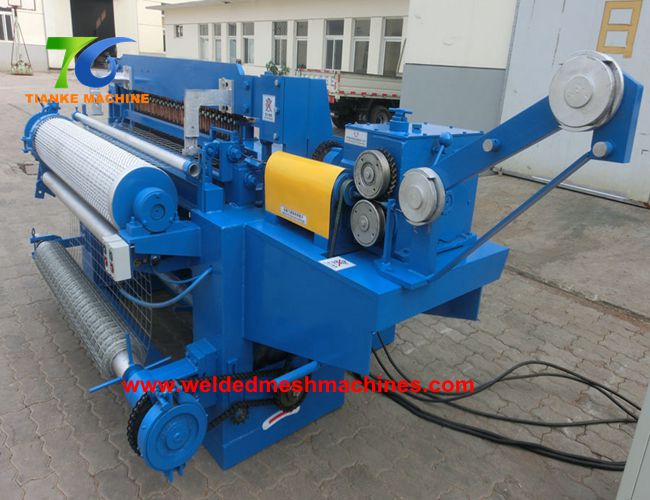

    2T Welded Wire Mesh Machine

    Green Iron Wire Roll Mesh Full Automatic Wire Mesh Welding Machine


    Introduction of Wire Mesh Welding Machine

    1. The mesh width is equal to the length of weft wire.

    2. The electric current, the welding time, warp and weft opening all can be adjustable.

    3. Raw materials can be galvanized wire, black wire and stainless steel wire.

    4. Both longitude wire and weft wire can be fed from wire coils automatically.

    5. The mesh length can be set on the counter switch in the electric cabinet

    6. It adopts Schneider low voltage apparatus.

    7. Wire mesh roll machine is equipped with 8-level adjustable welding transformers to suit different wire diameters.

    8. It has adjustable middle cutter to cut mesh in different size.


    Wire Mesh Welding Machine Technology

    The warp wires go through the screw into the sparse board and are fixed in the bottom of electrodes. The weft wires is fed from auxiliary engine continually ,then straightening into the hopper, when weft wires reach the pre-set length , they are been cut off automatically. The machine begin welding continually. The electric cabinet control the welding time, current and the mesh roll length.


    Wire Mesh Welding Machine Advantages

    1. High capacity, more efficient,

    2. One worker can operate several machines at the same time, low manual labour cost

    3. Lower noise, material-saving

    4. Great production capacity sustainable supply. According to customers requirement. We support the customized including package.

    5. 100% new materials and the best production process,so our defective rate is lower than 0.1%


    Welded Wire Mesh Machine Parameter

    ModelDHW-1DHW-2DHW-3
    Wire diameter0.5-0.8mm0.8-1.8mm0.8-1.8mm
    Mesh size1 / 4" - 1 / 2"1 / 4" - 1 / 2"1" - 6"
    Mesh width3feet, 4feet4feet, 5feet5feet, 6feet, 7feet
    Motor2.2kw2.2kw2.2kw,4.0kw
    Welding speedmax 75 rows / minmax 120 rows / minmax 80 rows / min
    Overall dimension2.3*1.3*1.4m

    2.0*1.50*1.6m

    3.0*1.75*1.6m

    2.0*1.50*1.6m

    3.0*1.75*1.6m

    Weight1.5T2T, 2.5T2T, 2.5T, 3T, 3.5t
    Transformers50kva*365kva*4 ; 65kva*565kva*4 ; 65kva*5

    Wire Mesh Welding Machine Packaging

    1. The bracket and auxiliary equipment is wrapped with plastic film.The spare parts is put in carton box.

    2. The main machine will be fixed in the container by steel wire rope to make it stable.

    3. It need one 20 feet or 40 feet container to shipment


    Wire Mesh Welding Machine Deliver List

    1. Electric welded mesh machine
    2. Mesh repairing table, 1set

    3. Mesh repairing machine, 1set
    4. Wire rolling machine, 1 set
    5. Bobbin stand-off, 1 set
    6. Iron wire coils, 61pcs
    7. Electric cutter, 1pc
    8. Spare parts, one box

    Spare parts list:
    Circuit board, 1pc
    SCR, 2pcs
    Sensor switch, 2pcs
    Contactor, 2pcs
    Transformer of electric board,1pc Potentiometers,1pc
    Counter,1pc
    Tools, 1set
    Straighten springs, 150pcs
    Cutting nozzle&knife, 2pcs
    Inlet&outlet nozzle, 2pcs
    Magnet, 10pcs


    Control Cabinet: Customers can specify the brand of electronic components
