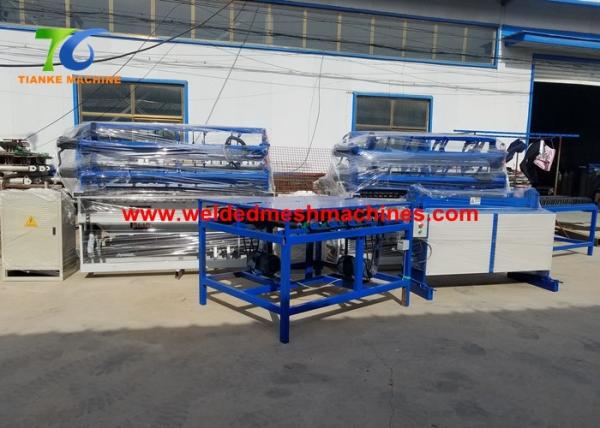

Construction 3000mm Iron Wire Fence Making Machine 125KVA Transformer

    Buy cheap Construction 3000mm Iron Wire Fence Making Machine 125KVA Transformer from wholesalers

    Buy cheap Construction 3000mm Iron Wire Fence Making Machine 125KVA Transformer from wholesalers
    • Buy cheap Construction 3000mm Iron Wire Fence Making Machine 125KVA Transformer from wholesalers

    Construction 3000mm Iron Wire Fence Making Machine 125KVA Transformer

    Ask Lasest Price
    Brand Name : Tianke
    Model Number : TK-HWJ2500
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 15 sets/Month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Construction 3000mm Iron Wire Fence Making Machine 125KVA Transformer

    Iron Wire Mesh In Egypt Construction Welded Mesh Panel Machine


    Welded Mesh Panel Machine Description

    The welded mesh panel machine can weld black iron wire,galvanized wire,stainless steel wire,low carbon wire.The machine is CNC PLC control welding machine.You can input the weft wire distance,the mesh panel quantity,the time on the control cabinet.The welding is automatic.It will weld all the points on the weft wire at the same time.


    Fence Mesh Welding Machine Advantage

    1. Controlled by CNC PLC system,the welding current and welding time in each welding transformer can be individually adjusted,The machine operator interface with color touch screen and control buttons,easy to operate.

    2. Host framework structure,stable performance,the welding pressure is continuously adjustable,soild and perfect welding spot.

    3. Fast welding speed,high precision,high firmness.uniform mesh spacing,neat edges,no trimming.


    Fence Mesh Welding Machine Technology

    1. Our fence mesh welding machine current control and welding time are controlled by PLC program system . The input panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .

    2. Pre-cut warp line wire feeding by manual, pre-cut weft wire auto feeding by wire hopper with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the weft wire will fallen automatically from the hopper.

    3. Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.

    4. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.

    5. Equipped with fence bending machine can produce 3D fence panel,this fence quality is best fence products in the markets.


    Servo Motor in the mesh pulling car,draw the net at a uniform speed to ensure that the net surface will not tilt.



    FAQ

    Q: How to get an accurate quotation?

    1. Wire diameter : From mm to mm.

    2. Line wire space : From mm to mm.

    Cross wire space : From mm to mm.

    3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)

    4. Do you want to weld wire mesh panel or mesh in coil ?


    Q: What's the payment terms, MOQ, warranty, FOB......

    1.Payment terms: 30% T/T in advance, 70%T/T before loading

    2.MOQ: 1 UNIT, FOB Xingang, Tianjin

    3.Warranty: 12 months following delievery.

    4.Engineers avaliable to service machinery overseas: Worker-training, installation.etc

    5.All machines were tested and adjusted before delivery.
