Building Steel Wire Mesh Panel In Myanmar Fence Mesh Welding Machine

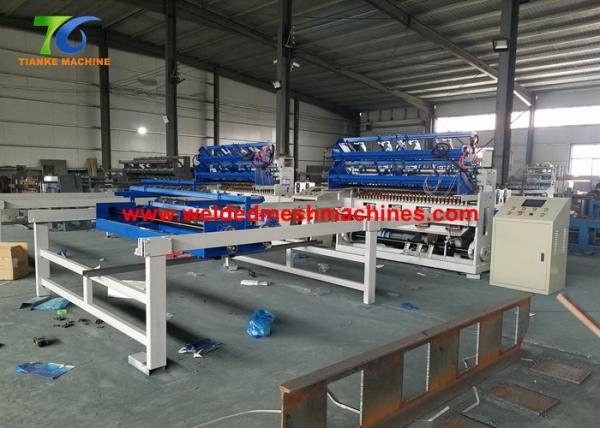

Fence Mesh Welding Machine Description

This type of fence mesh welding machine is the most advance kind in the field of welded wire mesh panel machine .it have the character of the PLC control system ,water cooling when the machine works, it was very precise when you want to adjust the pressure ,The most feature is that the finish mesh panel do not need to slice the side .More ever ,both the weft wire and the longitude wire are pre straighten and cutting,so the mesh surface is very flat.

Fence Mesh Welding Machine Characteristic

1. The fence mesh welding machine, which welding pressure comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper

2. The fence mesh welding machine uses PLC control technique, the separate welding technology adopt advanced Sonydigital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.

3. The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.

4.The mesh pulling system is controlled by stepper motor, the mesh hole is not easy to deform and mesh opening size is rather accurate, welding aperture could adjust randomly with certain range.

5. The machine use touch screen operation system, you can adjust the welding time and mesh size according to your demand.

Fence Mesh Welding Machine Parameter

FAQ

Q: How to get an accurate quotation?

1. Wire diameter : From mm to mm.

2. Line wire space : From mm to mm.

Cross wire space : From mm to mm.

3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)

4. Do you want to weld wire mesh panel or mesh in coil ?

Q: What's the payment terms, MOQ, warranty, FOB......

1.Payment terms: 30% T/T in advance, 70%T/T before loading

2.MOQ: 1 UNIT, FOB Xingang, Tianjin

3.Warranty: 12 months following delievery.

4.Engineers avaliable to service machinery overseas: Worker-training, installation.etc

5.All machines were tested and adjusted before delivery.
