Brick Force Making Machine Used In Wall Construction In Zimbabwe
Brick Force Making Machine Description
The brick force making machine is wire mesh roll making
machine.This kind of mesh is widely used in building wall.The
finished mesh is in roll.
The welding is automatic.And there is automatic mesh rolling
device.The worker needs to put the weft wire to the wire hopper and
unload the mesh rolls from the machine.The machine can produce
three rolls in one time.So the output of the machine is high.
Welded Wire Mesh Panel Making Machine Parameter
| Model | TK-HWJ1200 | Wire diameter | 2-4mm |
| Line wire pitch | 50-300mm | Weft wire pitch | Min.50mm |
| Welding width | Max.1200mm | Roll length | Max.100mm |
| Welding speed | Max.75 times/min | Welding torch | 6 pcs |
| Welding transformer | 125kva*1pcs | Mesh type | Roll mesh |
Welded Wire Mesh Panel Making Machine Feature

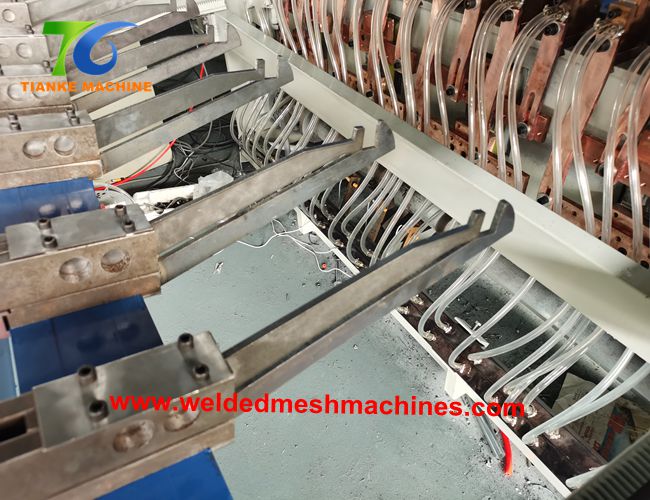

1. The warp wire is feeding in coil wire.It has six welding
electrodes.
2. High chromium copper is used as welding electrode, which has
good conductivity, wear resistance and long service time.
3. The mesh is equipped with automatica mesh cutting machine.This
device can cut the whole mesh panel to three pieces.
4. The mesh rolling machine will roll the mesh to three rolls
automatically.
5. The machine belongs to CNC wire mesh welding machine.There are
visual touch screen in the control panel,just like a computer.It is
very easy for the worker to operate the machine.
6. You can adjust the welding current and welding speed of the
machine.
Welded Wire Mesh Panel Making Machine Technology
The machine is CNC welded wire mesh machine.The full automatic wire
mesh welding machine adopts synchronous control technique, welding
time and sub-control welding is composed of PLC program system.The
machine can detect welding, mesh pulling and wire falling. If there
is a fault, it will be displayed on the control panel. This allows
the problem to be solved in time
Packaging
1.main machine and accessory equipment will be packed with sketch
film paper;
2.control cabinet and spare parts will be packed with the wooden
box;
3.finally all the machines will be fixed with hornwoods and steel
oil wire rope,ensure them stable and not move in the container.
Main Welding Machine with control system
Automatic Wire Hopper: The weft wire is falling automatically.
Mesh Rolling Device
Mesh Pulling Device: This device is controlled by servo motor, which can draw the net
at a uniform speed and return quickly.
Finish Mesh
